Fiber optic wiring to the terminal box

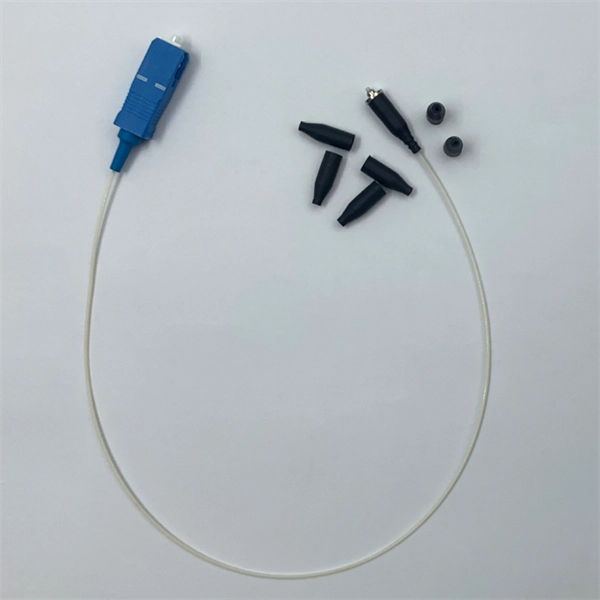

Proper wiring of a fiber optic terminal box involves careful mounting, fiber routing, splicing, connectorization, and labeling to ensure reliable signal transmission and maintain fiber integrity. Overview of a Fiber Optic Terminal BoxA fiber optic terminal box (FTB) serves as a secure termination point for optical fibers, connecting incoming cables to pigtails and adapters while protecting fibers from bending, dust, and handling damage. It is distinct from a splice box, which is fully sealed and primarily used for splicing two optical cables together; a terminal box allows pigtails to be fixed and connected to devices.

Pre-

Installation Considerations

Location: Choose a location that is accessible for maintenance and aligns with network requirements. Indoor boxes are suitable for protected corridors, while outdoor boxes require weatherproofing and UV resistance. Capacity Planning: Determine the number of fibers to be terminated and select a box with sufficient ports and splice trays for current and future needs.

Tools and Accessories: Prepare a fiber cleaver, stripper, fusion splicer, crimping tools, cleaning kit, and mounting hardware.

Installation Steps

Mounting the Box: Secure the FTB to a wall, rack, or DIN rail using appropriate anchors or screws. Ensure the box is level and stable to prevent fiber stress. Cable Entry and Management: Route incoming and outgoing fiber cables through designated entry points.

Use cable clamps or ties to secure cables and maintain the minimum bend radius (typically ≥30mm) to prevent signal loss. Fiber Preparation: Strip the cable jacket and buffer coating to expose the fiber strands. Ensure smooth surfaces to facilitate splicing or connectorization.

Splicing and Connectorization: Fusion or mechanical splicing: Connect fibers to pigtails using splice trays for organized management. Adapters and connectors: Insert fibers into SC, LC, FC, or ST adapters as required, ensuring proper alignment to prevent signal loss. Slack Management: Coil excess fiber neatly within the box to avoid tangling and maintain bend radius.

Labeling: Mark each port and fiber for easy identification during troubleshooting or future maintenance. Testing: Verify fiber continuity and signal quality using an OTDR or power meter to ensure proper installation. Closing the Box: Secure the lid tightly to prevent dust or moisture ingress, especially for outdoor installations.

Maintenance Tips

Regularly inspect for fiber stress, dust, or loose connections. Keep splice trays organized and avoid stacking splices improperly. Ensure adapters and connectors remain clean and aligned to maintain signal integrity.

By following these steps, you can achieve a reliable, organized, and maintainable fiber optic terminal box installation, supporting efficient data transmission and long-term network performance.
