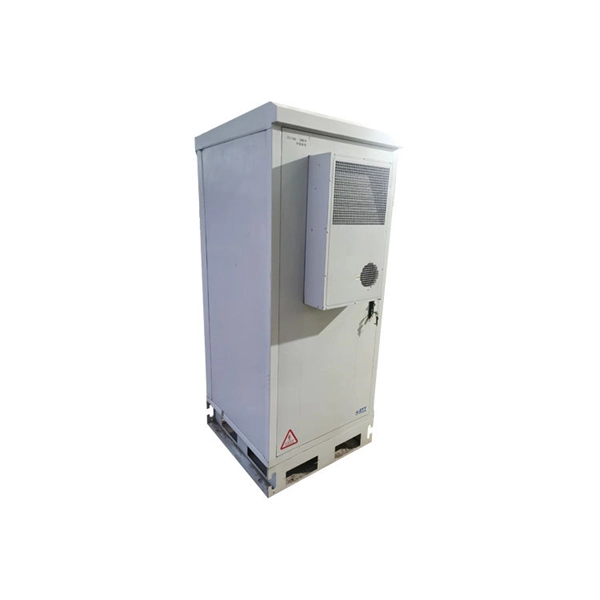

Cable laying in distribution boxes

A proper cable laying scheme ensures safe, efficient, and code-compliant routing of cables to and from distribution boxes, minimizing losses and facilitating maintenance.

Key Principles for Cable Laying

Load Assessment and Distribution: Begin by calculating the total power demand, including continuous and intermittent loads, to determine the rated current for each distribution box. Strategically place boxes near high-power equipment clusters to minimize cable length and reduce voltage drop and energy losses. Voltage Separation: Maintain separation between different voltage levels (e.g., 400V, 1kV, 10kV) to prevent interference and ensure safety.

Protection and Safety: Select distribution boxes with appropriate protection devices such as circuit breakers, fuses, and microprocessor-based protection systems. Ensure proper grounding and neutral connections to safely dissipate fault currents. Compliance with Standards: Follow IEC, NEC, or local electrical codes.

Use certified components (UL/CE) and maintain proper documentation for inspections. For underground or concealed cables, adhere to IEC standards for trench dimensions, backfilling, cable spacing, and protection against moisture or mechanical damage.

Cable Routing and Containment

Cable Trays, Ladders, and Trunking: Use cable trays or ladder systems to support and organize cables. Ensure trays are level, properly supported, and protected from moisture, sunlight, and mechanical damage. Store accessories and containment materials according to manufacturer recommendations before installation.

Entry and Termination: Provide designated cable entry points in the distribution box to maintain neat wiring.

Use DI

N rails for mounting devices and ensure all terminals are properly torqued to prevent overheating. Labeling and Modularity: Clearly label all circuits and consider modular designs to simplify future upgrades and maintenance.

Wiring Configurations

Circuit Breaker Connections: Connect main breakers, busbars, neutral bars, and earth bars according to the load type. Use 2P breakers for full isolation where necessary, and ensure proper coordination between branch circuits to prevent overloads or nuisance tripping. Branch Circuit Management: Separate high-power and low-power circuits, and avoid overloading any single distribution box.

Use comb busbars where possible to maintain uniform current distribution.

Maintenance and Inspection

Schedule regular inspections and testing of cables, joints, and distribution boxes. Ensure accessibility for future maintenance, especially for underground or high-voltage installations. Maintain records of installation and testing for compliance and safety audits.

Summary

A well-designed cable laying scheme for distribution boxes integrates load planning, voltage separation, protective devices, proper containment, and compliance with standards. This approach enhances safety, reduces energy losses, simplifies maintenance, and ensures long-term reliability of the electrical distribution system.
