How to connect the fiber optic terminal box to the home s incoming line

To connect a fiber optic terminal box to your home's incoming line, you mount the box, splice the incoming fiber to pigtails, secure adapters, and test the connection for signal integrity.

Step-by-

Step Process1. Mount the Terminal Box Choose a suitable indoor location near your ONT or electrical panel. Mark screw holes, drill pilot holes, and secure the box to the wall using anchors or screws.

Ensure the box is level and accessible for future maintenance ( ). 2. Route the Incoming Fiber Feed the incoming fiber cable through the box's entry port.

Leave a service loop of 10–15 cm inside the box to prevent tension on the fiber. Secure the cable with internal clips to avoid sharp bends and maintain a minimum bend radius of 30 mm ( ). 3.

Prepare the Fiber for Splicing Strip the outer jacket, buffer, and coating from the fiber using a fiber stripper. Cleave the fiber end cleanly at a perpendicular angle (≤0. 5°) and clean it with alcohol to remove dust or debris ( ).

4. Splice the Fiber to Pigtails Use fusion splicing or mechanical splicing to connect the incoming fiber to pre-terminated pigtails inside the terminal box. Place the spliced fibers in the splice tray and protect them with heat-shrink tubing if using fusion splices ( ).

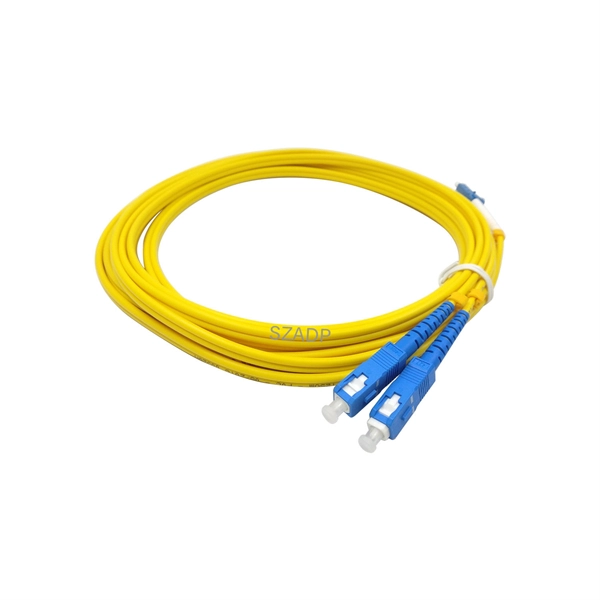

5. Connect Pigtails to Adapters Insert the pigtail connectors into the fiber adapters (SC/APC or LC) mounted on the box. These adapters serve as the interface for your ONT or other devices ( ).

6. Organize and Close the Box Arrange fibers neatly to avoid tight bends, trim excess cable ties, and close the box cover. Ensure dust caps are used on unused ports to protect the fiber ends ( ).

7. Test the Connection Use a fiber power meter or OTDR to verify signal levels.

For GPO

N networks, ideal light levels range from -27 dBm to -8 dBm. Testing ensures proper splicing and avoids future service issues ( ).

Key Tips

Never loop or bend fibers sharply; maintain the minimum bend radius. Label ports and fibers for easier troubleshooting and future expansion. Keep the terminal box accessible for maintenance and upgrades.

Use AP

C connectors for GPON networks to minimize reflection loss ( ). By following these steps, your fiber optic terminal box will be properly connected to the incoming line, ensuring a stable and high-quality connection to your home network.
