Methods for Termination and Splicing of Optical Fiber Cables

Fiber optic cables can be terminated using connectors for removable connections or spliced for permanent, low-loss joins, with fusion and mechanical splicing being the primary methods.

Fiber Termination

Fiber termination is the process of preparing the end of a fiber optic cable to connect to another fiber, device, or network. Proper termination ensures low signal loss, minimal reflectance, and high mechanical strength. Termination is typically done using connectors, which provide a removable and reusable interface.

Common connector types include: LC (Lucent Connector): Compact, ideal for high-density environments.

S

C (Subscriber Connector): Push-pull design for easy insertion and removal.

S

T, FC, MU, E2000/LX-5, MT: Used for multimode or ribbon cables, with variations in ferrule size and alignment mechanisms. Connectors are widely used in data centers, patch panels, and network equipment, allowing flexibility for frequent reconfiguration. Multimode fibers are easier to terminate in the field, while singlemode fibers often require factory-made pigtails spliced onto the installed cable for optimal performance.

Fiber Splicing

Fiber splicing creates a permanent joint between two fiber ends, offering the lowest signal loss and highest durability. Splicing is essential for long-distance networks, backbone extensions, and emergency repairs. There are two main splicing methods: Fusion SplicingUses an electric arc to fuse fiber ends together.

Provides extremely low insertion loss (0. 01–0. 1 dB) and minimal back reflection.

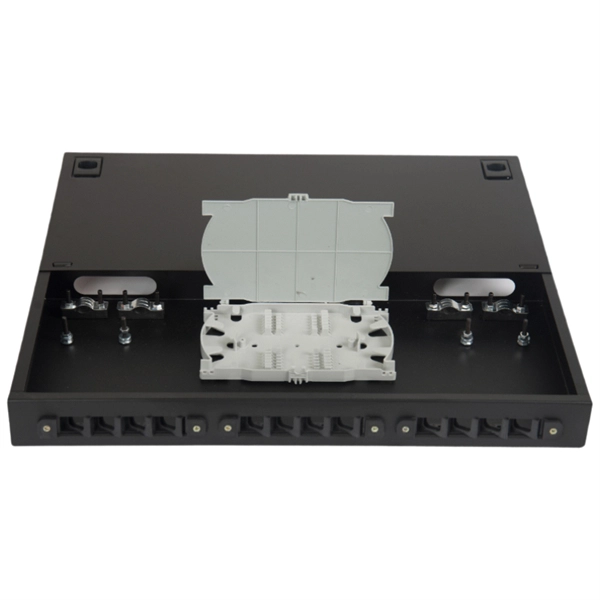

Ideal for singlemode fibers and permanent installations. Requires specialized equipment (fusion splicer) and careful preparation, including stripping, cleaning, and cleaving the fiber. Splices are protected using heat-shrink sleeves and organized in splice trays within closures to prevent physical damage.

Mechanical Splicing

Aligns fibers using a gel or adhesive in a mechanical fixture. Easier and faster than fusion splicing but has slightly higher signal loss. Often used for temporary repairs or multimode fibers.

Can be reversed if needed, unlike fusion splices.

Best Practices

Cleanliness: Use lint-free wipes and high-purity alcohol to remove dust and residue. Precision: Fiber cores are extremely small; micron-level alignment is critical. Protection: Splices and terminations must be housed in closures to protect against moisture, dirt, and mechanical stress.

Testing: Use an Optical Time-Domain Reflectometer (OTDR) to verify splice quality and measure loss. In summary, connectors are preferred for flexible, removable terminations, while fusion or mechanical splicing is used for permanent, low-loss connections. The choice depends on fiber type, network requirements, and whether the installation is temporary or permanent.

Proper tools, preparation, and testing are essential for reliable optical performance.
