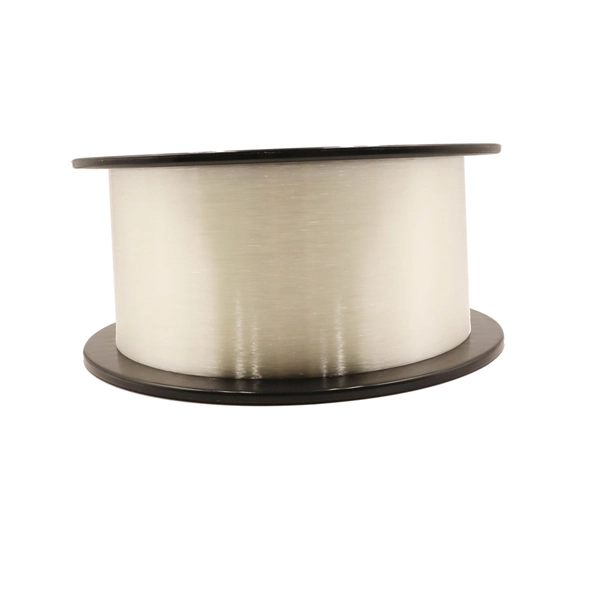

Optical cable for light source

Fiber and communications infrastructure knowledge brief Published 28 May 2021

Use this reference to prepare product questions for CJC FIBRE. Check interfaces, capacity, protection and installation requirements against the current product documentation.

Optical cables transmit light from a source to a target location without carrying electricity, using single-core or multi-core fibers for efficient illumination.

How Optical Cables Work

Optical cables, commonly made from glass or plastic fibers, transmit light through total internal reflection along the fiber core, which has a higher refractive index than the surrounding cladding. The fiber itself does not carry electricity or heat, making it safe and energy-efficient. A light source, such as an LED or laser, injects light into the fiber, which then travels to the desired location, whether for decorative, functional, or architectural lighting.

Types of Fiber Optic Cables for LightingSingle-Core Fiber: Contains one fiber core, ideal for small points of light like star ceilings or accent lighting. It is flexible but transmits less light compared to multi-core fibers.

Multi-

Core Fiber: Contains multiple cores, producing more light and suitable for applications like pool strip lighting or ambient color washes.

End-

Emitting Fiber: Emits light only from the tip, commonly used for pinpoint illumination or decorative effects.

Side-

Emitting Fiber: Emits light along the length of the cable, providing 360° illumination for ambient or decorative lighting.

Applications

Interior Lighting: Fiber optic cables can transport sunlight or artificial light indoors, reducing electricity use and providing natural illumination. Decorative Effects: Star ceilings, wall washes, and pool lighting benefit from flexible fiber optic cables that can be shaped and routed easily. Medical and Technical Uses: Specialized light cables, such as those used in endoscopy, are designed for high transmission efficiency and temperature resistance.

Advantages

Energy Efficiency: Low-power light sources can illuminate large areas. Safety: No electrical current in the fiber reduces fire and shock risks. Flexibility: Fibers can bend and route through tight spaces without losing light quality.

Durability: Resistant to heat and, in some cases, water or chemicals, depending on the fiber type. In summary, optical cables for light sources provide a versatile, safe, and efficient method to transmit light for both functional and decorative purposes, with options tailored to the intensity, direction, and coverage required.
