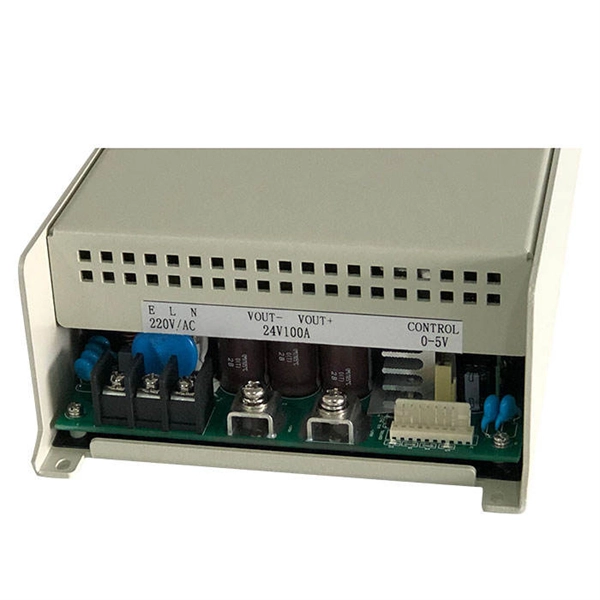

How to identify the positive and negative terminals in a distribution box circuit

Positive terminals are usually marked with a “+” or red wire, while negative terminals are marked with a “-” or black wire, and a multimeter can confirm polarity safely. Visual IdentificationColor-Coding: In most DC circuits, the red wire indicates positive (+) and the black wire indicates negative (-).

For A

C circuits, the black wire is typically the “hot” or phase wire, red may be a secondary hot, and white is neutral. Markings and Labels: Terminals may have plus (+) or minus (-) signs, arrows, or written labels indicating polarity. Inspecting these markings carefully helps prevent mistakes.

Component Symbols: In wiring diagrams, batteries and other components often show polarity with a rectangle or line symbols, helping you trace the positive and negative connections. Using a MultimeterSet the multimeter to DC voltage mode. Connect the red probe to the suspected positive terminal and the black probe to the suspected negative terminal.

A positive voltage reading confirms correct polarity; a negative reading indicates the probes are reversed.

For A

C circuits, the multimeter can identify the hot and neutral wires, though polarity is less critical because current alternates.

Safety Considerations

Always turn off power before inspecting or touching wires in a distribution box. Verify polarity before connecting devices to avoid short circuits, equipment damage, or electrical hazards. If wires are unmarked or color-coding is inconsistent, trace the circuit or consult manufacturer documentation to confirm terminal functions.

By combining visual inspection, color-coding, labeling, and multimeter testing, you can reliably identify positive and negative terminals in a distribution box circuit, ensuring safe and correct connections.
