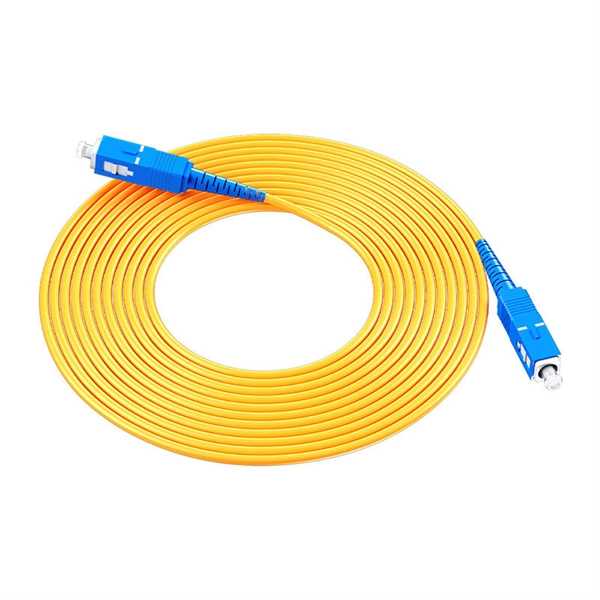

Single-mode fiber optic cable disconnection alarm

A single-mode fiber optic disconnection alarm is triggered when a break or loss of signal occurs in the fiber link, alerting the fire alarm control system to a communication failure. How Disconnection Alarms WorkSingle-mode fiber optic cables transmit data as a single beam of light over long distances with minimal loss, making them ideal for fire alarm networks across multiple floors or buildings. Disconnection alarms are typically generated by fiber optic interface modules or converters that monitor the integrity of the optical signal.

If the fiber is cut, disconnected, or experiences excessive attenuation, the module detects the loss of light and sends a fault signal to the fire alarm control panel.

Key Components

Fiber Optic Converters: These devices convert electrical signals from the fire alarm control panel to optical signals for transmission over single-mode fiber. Each fire alarm control panel usually requires at least one converter, mounted directly on a DIN rail or inside the panel housing. Interface Modules: Modules like Siemens FN2013-U1 or Honeywell HS-NCM series monitor the fiber link.

They can operate as end-point units or repeaters, and they detect signal loss to trigger alarms. Network Configuration: Proper wiring is essential. Fiber pairs are polarity-sensitive, with transmit (TX) and receive (RX) lines connecting modules in either daisy chain or star configurations.

Incorrect connections can cause false disconnection alarms.

Alarm Signaling

When a disconnection occurs, the module immediately reports a fault or trouble condition to the fire alarm control panel. This ensures that building safety personnel are alerted to potential communication failures, maintaining compliance with NFPA 72 guidelines for reliable life-safety networks.

Best Practices

Use high-quality single-mode fiber (OS2) for long-distance runs to minimize signal loss. Ensure secure connections with proper SC or ST connectors and avoid sharp bends that could attenuate the signal. Regularly test fiber links and monitor modules for early detection of degradation.

Follow manufacturer recommendations for module placement, grounding, and network topology to prevent false alarms. By implementing these measures, single-mode fiber networks in fire alarm systems can reliably detect disconnections and maintain continuous communication for life-safety applications.
