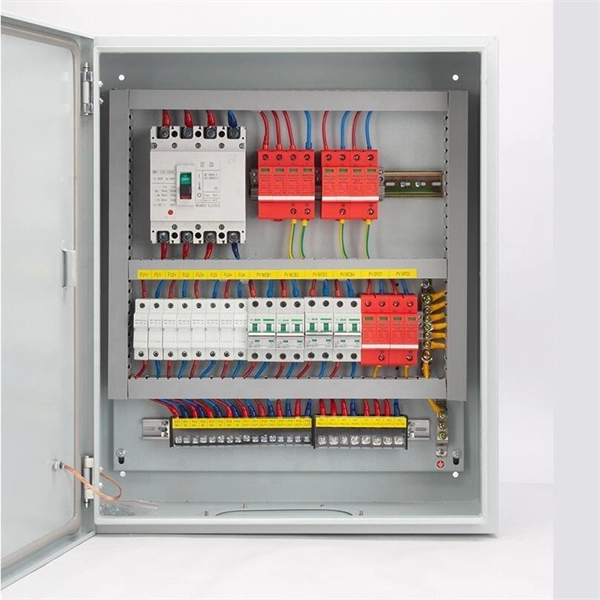

Wiring of Double-Layer Distribution Box

Proper wiring in a double-layer distribution box involves connecting live, neutral, and earth wires to the correct terminals, arranging breakers systematically, and ensuring safety compliance. Step 1: Preparation and Material SelectionCircuit Breakers: Choose appropriate 1P, 2P, or RCD-protected breakers based on the type of circuits (single-phase or two-phase) and load requirements. Wires: Select wire gauge according to the load; typically, 2.

5mm² for lighting and sockets, 4mm² for air conditioning or high-power circuits. Tools and Accessories: Prepare wiring ties, screwdrivers, multimeter, and insulation materials. Step 2: Box Placement and SafetyInstall the distribution box in a dry, accessible location with good ventilation, typically around 1.

5 meters above the floor. Ensure the box has proper IP/NEMA rating for protection against dust and moisture. Verify that the earth pit is properly installed for grounding.

Step 3: Wiring ConnectionsLive (L) Wire: Connect the incoming live wire to the line terminal of the main breaker. From there, distribute to branch MCBs or RCCBs. Neutral (N) Wire: For 1P breakers, connect the neutral directly to the neutral busbar.

For 2P breakers, connect both live and neutral to the breaker terminals. Protective Earth (PE) Wire: Connect to the ground busbar and ensure all metallic parts are properly earthed. Step 4: Arrangement of BreakersArrange breakers from left to right, with reserved positions typically on the right side.

Use parallel connections if needed to simplify wiring between the main breaker and branch circuits. Maintain consistent wire color coding: blue for neutral, yellow/green/red for phases. Step 5: Wiring ManagementRoute wires neatly: incoming wires on the left, outgoing wires on the right.

Use plastic ties to bind wires, keeping spacing uniform and wires straight. Clearly label each circuit with voltage, AC/DC, and purpose for easy identification. Step 6: Safety ChecksPerform a visual inspection to ensure no exposed conductors or loose connections.

Use a multimeter to verify continuity, correct polarity, and absence of short circuits. Confirm that RCCB or RCD devices function correctly by testing trip mechanisms. Step 7: Final StepsClose the distribution box cover securely.

Record installation details for future maintenance or inspections. Schedule regular inspections to ensure long-term reliability and compliance with local electrical codes. By following these steps, a double-layer distribution box can be safely and efficiently wired, ensuring proper protection for all circuits and compliance with electrical standards.
