How to insert pre-insulated optical cables

Pre-insulated optical cables are best connected using pre-terminated connectors or fusion splicing, ensuring minimal signal loss and preserving fiber integrity.

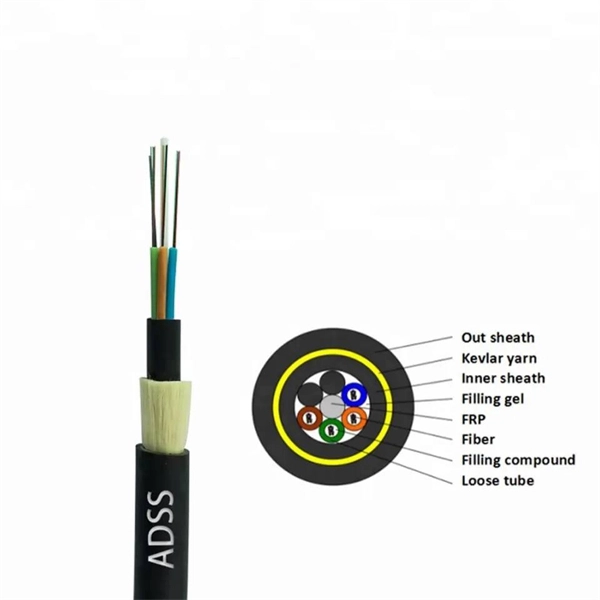

Understanding Pre-

Insulated Optical CablesPre-insulated or pre-terminated fiber optic cables come with factory-installed connectors such as SC, LC, or MPO, which eliminate the need for on-site splicing and reduce signal loss ( -50 dB). These cables are designed for immediate deployment and are tested for optical performance before delivery.

Preparation Before Connection

Inspect the Cable Ends: Check for any damage, kinks, or contamination on the connectors. Clean Connectors: Use specialized fiber optic cleaning tools to remove dust or debris, which can cause signal attenuation. Verify Compatibility: Ensure the connector type matches the port on your device or patch panel.

Connection Methods1.

Using Pre-

Terminated Connectors

Align the factory-installed connector with the corresponding port or adapter. Insert the connector gently until it clicks or fits securely. Avoid pulling or twisting the cable.

For multi-core cables, ensure each fiber is connected to the correct port to maintain network integrity. 2. Fusion Splicing (if field connection is required)Strip the cable jacket carefully to expose the fiber without damaging it.

Cleave the fiber using a precision cleaver to create a flat end. Use a fusion splicer to align and weld the fibers together, creating a permanent low-loss joint. Protect the splice with a heat-shrink sleeve or splice tray to maintain mechanical durability.

3.

Field-

Fit or Mechanical ConnectorsFor temporary or semi-permanent connections, mechanical connectors can be attached in the field. These connectors align the fiber ends mechanically and are faster than fusion splicing but may have slightly higher insertion loss.

Post-

Connection Testing

Use an optical power meter or OTDR to verify signal strength and attenuation. Test each fiber individually and ensure the measured loss is within the manufacturer's specifications. Re-clean and re-test if attenuation exceeds acceptable limits.

Handling and Installation Tips

Avoid exceeding bend radius to prevent fiber damage. Do not twist or pull on connectors; use proper pulling grips for long runs. For long cable runs, consider lubricants compatible with the cable jacket and use a straight pull technique.

Store any excess cable in a coil or storage box to prevent kinks or damage. By following these steps, you can ensure a reliable, low-loss connection for pre-insulated optical cables, whether using pre-terminated connectors, fusion splicing, or mechanical field-fit connectors. Proper preparation, careful handling, and post-connection testing are key to maintaining optimal network performance.
