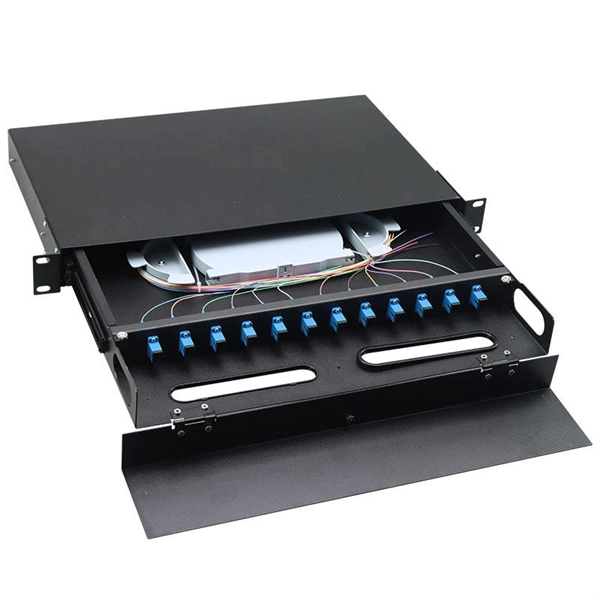

Fusion splice box under the fiber optic cable

A fusion splice box houses and protects fiber optic splices, ensuring low-loss, durable connections under the cable. Purpose of a Fusion Splice BoxA fusion splice box is an enclosure designed to protect the delicate junctions where two fiber optic cables are permanently joined using fusion splicing. It safeguards the spliced fibers from environmental stressors such as moisture, dust, vibration, and mechanical impact, which could otherwise degrade signal quality or damage the fibers.

By maintaining the integrity of the splice, the box ensures minimal signal loss, low reflection, and long-term network reliability.

Placement and Installation

Fusion splice boxes are typically installed under or alongside fiber optic cables, either mounted on poles, walls, or buried in underground ducts. The box provides a secure environment for the spliced fibers and allows for organized routing of individual fibers. Inside the box, splice trays hold the fibers in place, and protective sleeves cover the fusion points to prevent mechanical stress.

Proper installation requires careful handling of fibers to maintain bending radii and avoid tension, which could compromise splice quality.

Key Features

Mechanical Protection: Shields splices from physical damage and vibration. Environmental Sealing: Prevents moisture and dust ingress, which can cause attenuation or fiber degradation. Organized Fiber Management: Splice trays and routing guides prevent fiber tangling and maintain bend radius compliance.

Accessibility for Maintenance: Allows technicians to inspect, test, or add new splices without disturbing existing connections.

Best Practices

Use manufacturer-recommended splice sleeves to reduce failure rates. Maintain a minimum bending radius (typically >30 mm) when routing fibers inside the box. Ensure the box is securely mounted and sealed to prevent environmental exposure.

Regularly inspect and clean the box to remove dust or debris that could affect splice performance. In summary, a fusion splice box under a fiber optic cable is essential for protecting spliced fibers, maintaining signal integrity, and ensuring the long-term reliability of high-speed fiber optic networks. Proper installation, environmental protection, and organized fiber management are critical for optimal performance.
