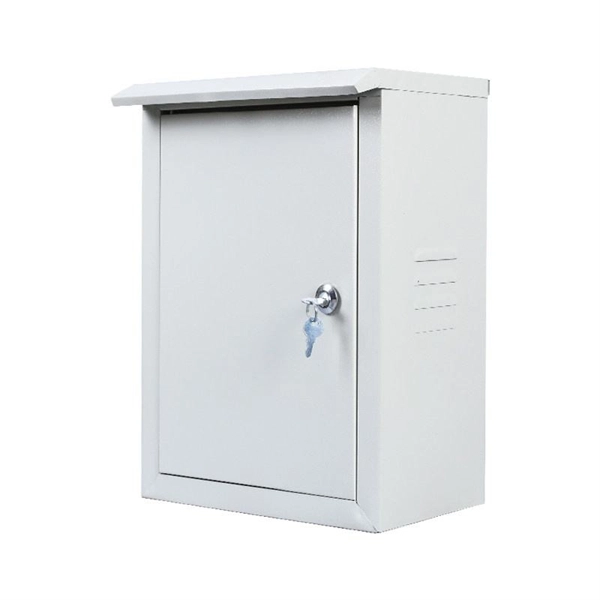

Correct installation of the neutral line in the distribution box

The neutral line should be securely connected to the neutral busbar in the distribution box, ensuring proper contact, correct routing, and compliance with safety standards. Key Steps for Installation1.

Preparation

Ensure all tools and materials are ready, including neutral busbars, insulated wires, screwdrivers, wire strippers, and multimeters, and that they meet the design specifications of the distribution box and load requirements. Inspect the distribution box for adequate space, structural integrity, and absence of damage or deformation. 2.

Neutral Busbar Installation

The neutral busbar is typically mounted on an insulating rail or side plate inside the distribution box. Secure the busbar firmly using screws or bolts to prevent loosening during operation. Only one neutral wire should be connected per terminal screw to avoid poor contact or overheating.

3.

Connecting Incoming Neutral

Strip the insulation of the incoming neutral wire to about 10–15 mm. Insert the stripped wire into the inlet hole of the neutral busbar and tighten the screw to ensure a solid connection. The incoming neutral is usually connected after the RCCB or main isolator, depending on the system design.

4.

Connecting Outgoing Neutrals

Plan the routing of outgoing neutral wires to minimize bends and intersections, reducing mechanical stress. Strip the insulation of each outgoing neutral wire and insert it into the corresponding outlet hole on the neutral busbar, tightening the screw securely. Wrap connections with insulating tape if necessary to prevent accidental contact or leakage.

5. Integration with MCBs and RCCBsThe neutral line from the main supply passes through the RCCB and then connects to the neutral busbar. For single-pole MCBs, the phase wire is connected to the MCB, and the neutral from the load is connected to the neutral busbar.

For double-pole MCBs, both phase and neutral from the RCCB output are connected to the MCB input, and the load's neutral is connected accordingly. 6.

Safety Checks

Verify that all neutral connections are tight and that no wires are double-tapped unless specifically allowed by the panel design. Ensure proper earthing of the distribution box and that the neutral busbar is isolated from the metal chassis except at the main bonding point. Conduct a final inspection to confirm there are no loose wires, short circuits, or potential hazards.

By following these steps, the neutral line will provide a reliable return path for current, maintain voltage stability, and ensure the safety of the electrical system.
