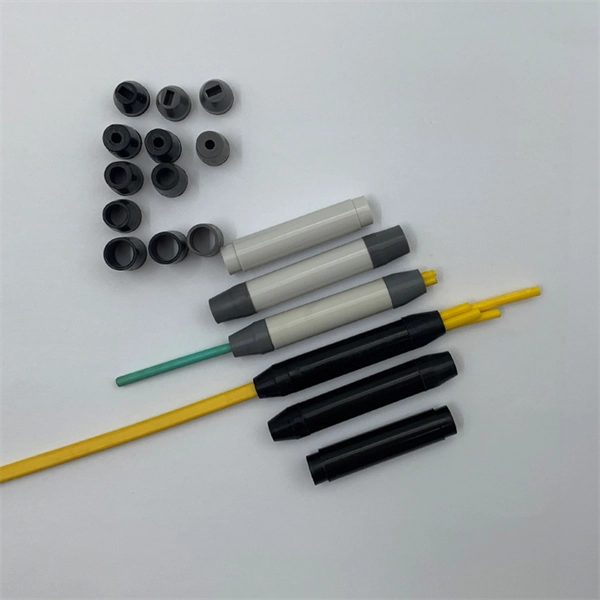

Viewing fiber optic multimode and single-mode

Effective monitoring of fiber optic networks requires understanding the distinct characteristics of multimode and single-mode fibers and using appropriate testing tools to ensure signal integrity and network reliability.

Key Considerations for Monitoring

Fiber Type Differences: Single-mode fiber (SMF) has a small core (8–10 µm) and transmits a single light mode, minimizing modal dispersion and supporting long-distance, high-bandwidth applications such as telecom backbones and intercity links. Multimode fiber (MMF) has a larger core (50–62. 5 µm) that allows multiple light modes, making it suitable for short-distance, high-density environments like data centers and LANs.

MM

F experiences modal dispersion, limiting its effective range. Monitoring Goals: Detect signal loss (attenuation) and ensure it remains within acceptable limits. Identify fiber breaks, bends, or connector issues that can degrade performance.

Verify bandwidth and modal dispersion for multimode fibers. Ensure long-term reliability and support for future network upgrades.

Common Monitoring Techniques

Optical Time-

Domain Reflectometer (OTDR): Sends pulses of light down the fiber and measures reflections to locate faults, splices, and connectors. Essential for both SMF and MMF, but particularly critical for long single-mode links where faults can occur over kilometers. Provides a trace showing loss events and distance to each event.

Optical Power Meter and Light Source: Measures the optical power at the receiver end to verify link loss. Useful for routine maintenance and verifying installation quality. Multimode fibers often use LED or VCSEL sources, while single-mode fibers use laser sources, so the test equipment must match the fiber type.

Visual Fault Locator (VFL): Uses visible red light to detect breaks, bends, or faulty connectors in short multimode links. Quick and effective for in-building or data center troubleshooting. Network Monitoring Systems: For active networks, optical performance monitors (OPMs) can continuously track signal strength, attenuation, and wavelength performance.

Particularly useful for single-mode long-haul networks where proactive monitoring prevents outages.

Best Practices

Match test equipment to fiber type: Use laser sources for SMF and LED/VCSEL for MMF. Document baseline measurements: Record initial loss and OTDR traces to compare against future tests. Regular inspection: Check connectors, splices, and patch panels for contamination or damage.

Plan for future upgrades: Single-mode fibers offer higher bandwidth potential and longer reach, so monitoring should consider scalability.

Summary

Monitoring fiber optic networks effectively requires combining knowledge of fiber characteristics with appropriate tools. Single-mode fibers demand precise, long-distance monitoring due to their high bandwidth and low dispersion, while multimode fibers benefit from simpler, short-range testing methods.

Using OTD

Rs, power meters, VFLs, and network monitoring systems ensures reliable performance, early fault detection, and long-term network stability.
