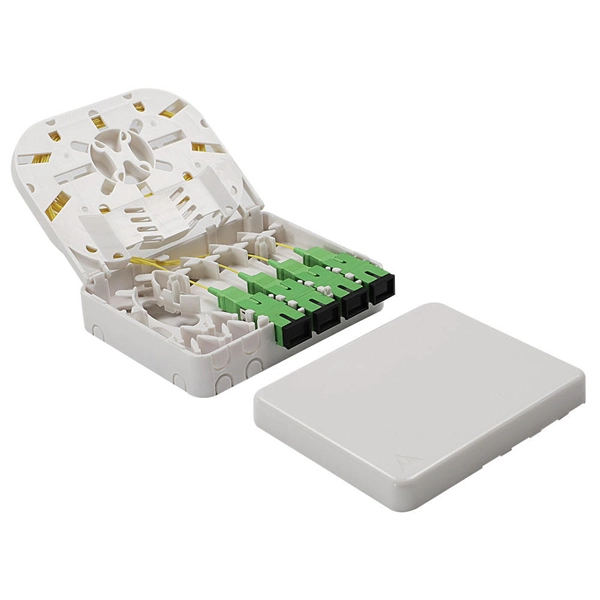

How to Choose Fiber Optic Flange Connectors

Fiber optic flange connectors are specialized adapters that provide precise alignment and secure mechanical mounting for fiber optic connections, often used in laboratory and optical systems.

Overview and Function

Fiber optic flange connectors are designed to align and connect optical fibers while providing a stable mechanical interface with panels, mounts, or optical components. They are commonly used with single-mode (SM), multi-mode (MM), polarization-maintaining (PM), and other specialized fibers. The ferrule, a cylindrical component made of ceramic, stainless steel, or polymer, ensures precise fiber alignment, while the connector housing protects the ferrule and maintains a robust connection during mating and demating operations (MEETOPTICS Academy).

Types and Compatibility

Flange connectors are available in various threaded series, such as SM1, SM05, and C-Mount, which allow conversion between standard fiber connectors like FC/PC, FC/APC, and SMA to threaded optical mounts. These flanges can couple fiber couplers with free-space optical components or lens sleeves, enabling light-shielded coupling in laboratory setups. SM1 flanges typically use 1.

035"-40 threads, while SM05 flanges use 0. 535"-40 threads. Both external and internal thread designs are available, with hand-tightened or tool-assisted installation options (LBTEK, JCOPTIX).

Flanged vs Flangeless AdaptersThe flange is a physical shoulder on the connector housing that provides a hard stop against a panel, limiting axial movement and improving installation repeatability. Flanged adapters offer greater long-term alignment stability, especially when multiple connectors are installed in a row. In contrast, flangeless adapters rely on panel cutout tolerances and external fasteners, offering more layout flexibility but potentially allowing micro-movements over time, which can reduce alignment margin during extended use (HoLight Optic).

Materials and Surface TreatmentHigh-quality fiber optic flanges are typically made from 304 stainless steel, which is precision-machined and often undergoes electromagnetic demagnetization to reduce magnetic interference. Surface treatments like plasma cleaning and sandblasting enhance corrosion resistance, reduce reflections, and improve optical performance in sensitive experiments (JCOPTIX, LBTEK).

Applications

Fiber optic flange connectors are widely used in: Laboratory optical experiments and research setupsCoupling fiber optic components to free-space optical systemsHigh-precision optical communication systemsIntegration with lens tubes, optical mounts, and mechanical stages They are essential for maintaining low insertion loss, precise alignment, and mechanical stability in both single-mode and multi-mode fiber systems. In summary, fiber optic flange connectors provide a reliable, mechanically stable interface for fiber optic systems, with options for threaded or flangeless designs, high-quality materials, and compatibility with various fiber types and optical components.

Their selection depends on the required alignment precision, panel design, and operational handling.
