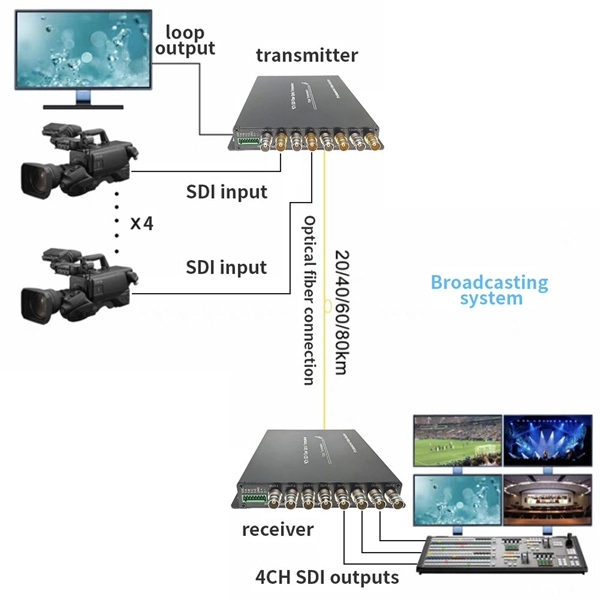

Inspection and Repair of Power Fiber Optic Cables

Effective inspection and repair of fiber optic cables involve visual inspection, cleaning, testing with specialized equipment, and careful splicing or replacement to restore signal integrity.

Fiber Optic Cable Components and Vulnerabilities

Fiber optic cables consist of a core (glass or plastic) that carries light signals, cladding to reflect light inward, a buffer for protection, and an outer jacket for durability. Single-mode fibers (SMF) are used for long-distance transmission, while multimode fibers (MMF) are suitable for shorter runs. Despite their advantages like EMI immunity and low attenuation, fibers are fragile and susceptible to breaks, bends, contamination, and environmental damage.

Inspection Techniques

Visual Inspection: Use a video microscope to examine connector ferrules for dirt, scratches, or cracks. A clean ferrule ensures proper physical contact and minimal signal loss. Protective caps should remain on connectors until installation to prevent contamination.

Visual Fault Locator (VFL): Injects visible light to detect breaks, bends, or poor connections along the fiber.

Optical Time-

Domain Reflectometer (OTDR): Measures insertion loss and identifies the location of splices, breaks, or high-loss points in long cables.

Cleaning Procedures

Use isopropanol and lint-free wipes or specialized click cleaners to remove dust and debris from ferrules. Ensure the correct cleaner is used for the ferrule type (1. 25 mm, 2.

5 mm, or MPO connectors). Clean both connectors in a mated pair if contamination is suspected.

Repair Methods

Splicing: For broken fibers, fusion splicing is preferred to minimize signal loss (
