Precautions for networking OLT and ONU splitter

Ensure compatibility, proper splitter selection, signal integrity, and careful installation to maintain reliable OLT-ONU connections.

Compatibility and Equipment Selection

Check OLT-ONU compatibility: Not all ONUs work seamlessly with every OLT due to differences in firmware, protocols, and vendor-specific implementations. Verify interoperability reports and conduct lab tests before deployment to avoid connectivity issues later. Choose the right OLT: Ensure the OLT has sufficient port capacity and supports modern PON standards like GPON, XG-PON, or NG-PON2 for scalability and future-proofing.

ON

U selection: Use ONUs that support the required bandwidth and service profiles, and ensure they can handle future upgrades.

Splitter Considerations

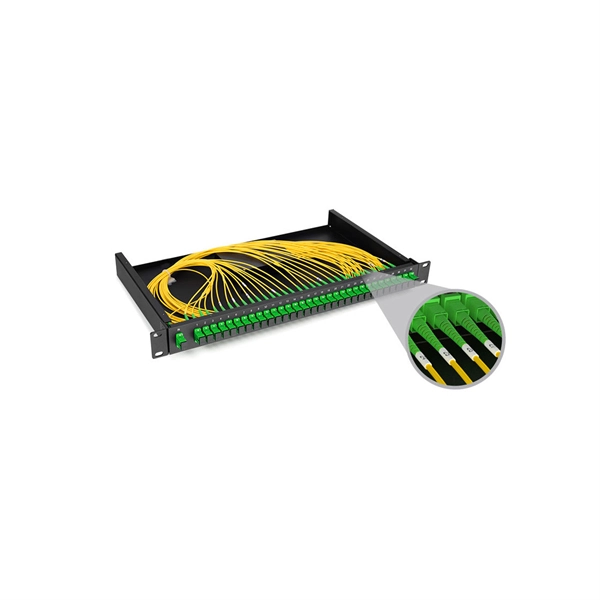

Select appropriate split ratios: Common ratios include 1: 8, 1: 16, 1: 32, or 1: 64. Higher split ratios reduce bandwidth per user, so balance cost savings with performance requirements. Choose splitter type: FBT splitters are cost-effective for small splits, while PLC splitters provide uniform signal distribution for larger splits.

Placement strategy: Primary splitting is ideal for urban centers, while secondary or cascaded splitting suits rural or wide-area deployments. Keep fiber lengths as short as possible to minimize signal loss.

Installation and Network Design

Plan network topology carefully: Map subscriber growth, calculate split ratios, and design for scalability to prevent congestion or underutilized hardware. Maintain fiber quality: Use high-quality single-mode fiber, avoid sharp bends, and ensure proper splicing or termination to reduce attenuation and errors. Power and redundancy: Implement backup power for OLTs and ONUs and consider redundant paths to maintain high availability.

Configuration and Testing

Configure ON

Us correctly: Assign service profiles, VLANs, and QoS settings as needed.

Most ON

Us are plug-and-play, but advanced setups may require manual configuration. Test connectivity: Verify signal quality, check for packet loss or latency, and ensure the ONU communicates properly with the OLT. Monitor performance: Use network management software to track throughput, latency, and error rates, enabling early detection of issues.

Maintenance and Operational Precautions

Regular inspection: Periodically check splitters, fiber connections, and ONUs for physical damage or signal degradation. Firmware updates: Keep OLT and ONU firmware up to date to maintain compatibility and security. Document network changes: Maintain accurate records of splitter locations, fiber routes, and device configurations to simplify troubleshooting and future upgrades.

By following these precautions, network operators can ensure reliable, high-performance OLT-ONU connections, optimize bandwidth distribution, and minimize downtime in FTTH or PON deployments.
