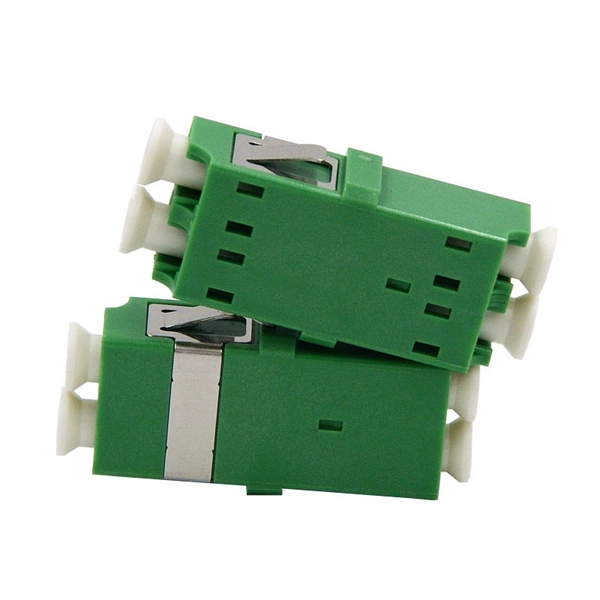

How to connect a dual-core fiber optic cable pigtail

To connect a dual-core fiber optic pigtail, carefully prepare, align, and fusion-splice each fiber individually, then test for signal integrity to ensure low-loss, reliable connections.

Preparation

Gather Tools and Materials: You will need a fiber cleaver, fusion splicer, stripper tool, alcohol wipes, heat-shrink sleeves, dual-core pigtails, and safety equipment such as gloves and safety glasses. Clean the Work Area: Fiber optics are highly sensitive to dust and debris. Ensure your workspace is clean and free of contaminants.

Inspect the Pigtail: Verify that the factory-terminated connectors are intact and pre-tested for quality.

Cable Preparation

Strip the Outer Jacket: Carefully remove the outer jacket of the dual-core fiber cable to expose the individual fibers without nicking them. Clean the Fibers: Use alcohol wipes to remove any dust or residue from the bare fibers. Cleave the Fibers: Make a precise, perpendicular cut on each fiber using a fiber cleaver to ensure optimal splicing.

Fusion Splicing

Align the Fibers: Place each fiber from the dual-core cable and the corresponding pigtail fiber into the fusion splicer. Ensure proper core alignment to minimize signal loss. Perform the Splice: Activate the fusion splicer to permanently join the fibers.

Repeat for both cores individually. Protect the Splice: Slide a heat-shrink sleeve over the splice and apply heat to secure and protect the joint.

Connector Installation and Testing

Connect to Equipment: Insert the factory-terminated connector ends of the pigtail into the appropriate ports on your patch panel, ODF, or active equipment. Test the Connection: Use an Optical Time Domain Reflectometer (OTDR) or power meter to verify signal strength, loss, and continuity for both cores. Cable Management: Secure excess cable with velcro straps or cable managers, maintaining proper bend radius to prevent damage.

Best Practices

Always handle fibers gently to avoid microbends or fractures. Work in a dust-free environment to prevent contamination. Use pre-tested, high-quality pigtails to reduce installation errors.

Label each fiber core clearly to avoid confusion during multi-core installations. Follow ANSI/TIA/EIA standards for fiber optic installation to ensure long-term reliability. By following these steps, you ensure that your dual-core fiber optic pigtail connections are low-loss, durable, and reliable, suitable for data centers, FTTH deployments, or telecom networks.
