Panel Fiber Optic Installation

Proper fiber optic panel installation involves careful mounting, cable management, connector cleaning, and secure termination to ensure optimal network performance.

Preparation and Planning

Before installation, conduct a site survey to determine the panel location, rack space, and cable routing. Obtain necessary permits if installing across public or private land, and ensure compliance with safety regulations. Identify whether the installation will use single-mode (long-distance) or multi-mode (short-range) fibers, as this affects connector types and panel configuration.

Mounting the Panel

Rack Mounting: Use the side mounting brackets to secure the panel to a standard 19" rack cabinet. Ensure the panel is level and firmly attached. Rear Cable Organizer: Install the rear cable organizer to manage incoming and outgoing cables efficiently.

This helps prevent bending or stress on the fibers and allows organization for multiple panels.

Sliding or Swing-

Out Panels: For panels with sliding or swing-out features, ensure the faceplate can remain open hands-free during installation for easier access to splice trays and connectors.

Installing Cassettes and Connectors

Clean Connectors: Before inserting connectors into module cassettes, clean both the adapters and cable connectors using proper fiber cleaning tools to prevent signal loss. Insert Cassettes: Slide the module cassettes into the designated drawers until you hear a locking click. Ensure proper orientation to avoid misalignment.

Splice Management: For panels with splice trays, route pigtails into the cable management section and secure them using splice holders or cable ties. Each splice holder can typically accommodate multiple splice protectors.

Cable Handling

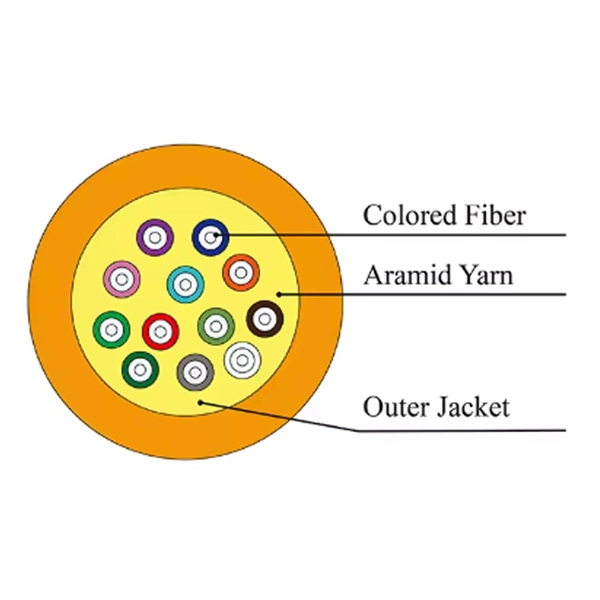

Avoid sharp bends and excessive tension. Use Aramid yarn reinforcement within cables to minimize stress during pulling or blowing installation. Route cables through guides and organizers to maintain bend radius and prevent damage.

Label all fibers and connectors clearly for future maintenance.

Termination and Testing

Terminate fibers according to the panel's specifications, ensuring correct orientation and secure connections. Test each fiber for continuity and signal quality before closing the panel. Maintain documentation of cable routes, connector types, and test results for troubleshooting and future upgrades.

Maintenance Tips

Regularly inspect and clean connectors to prevent signal degradation. Check cable management and secure any loose fibers. Follow manufacturer-specific instructions for warranty compliance and safe handling.

By following these steps, fiber optic panels can be installed efficiently, ensuring high-speed, reliable network performance while minimizing the risk of damage to delicate fiber cables.
