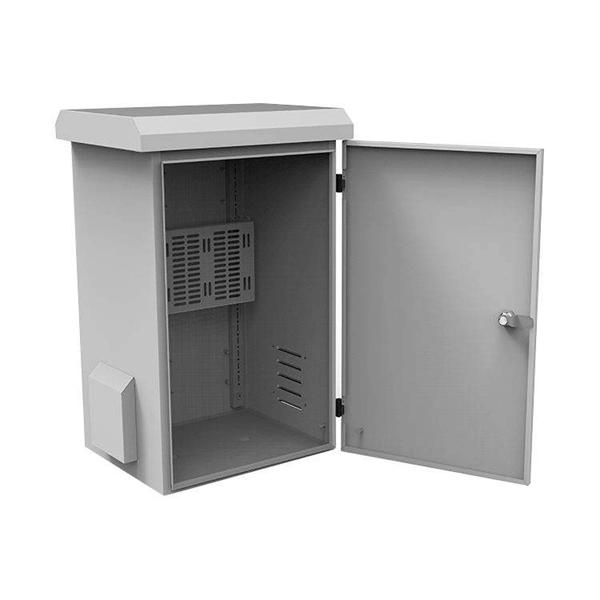

Pre-installed wiring for main power distribution box

Pre-installed wiring in a main distribution box safely distributes incoming power to multiple circuits through breakers, busbars, and protective devices. Overview of a Distribution BoxA distribution box (also called a distribution board or breaker box) receives power from the main supply and distributes it to individual circuits, each protected by circuit breakers or fuses. It contains a main switch or main breaker, busbars, neutral and earth bars, and protective devices like MCBs (Miniature Circuit Breakers) and RCCBs (Residual Current Circuit Breakers) for safety and overload protection.

Main Wiring Components

Main Input Wiring: The main power supply enters the distribution box through the main breaker.

In the US

A, a typical residential panel receives two hot wires (Hot 1 and Hot 2) and a neutral from the meter, providing 120/240V split-phase power. The main breaker connects to the hot busbars, which feed all downstream circuits. Busbars: Metal strips that distribute power from the main breaker to individual circuit breakers.

Separate busbars exist for hot, neutral, and ground connections. Circuit Breakers: Single-pole breakers connect one hot busbar to a circuit for 120V loads, while double-pole breakers connect both hot busbars for 240V loads. Each breaker protects its circuit from overcurrent.

RCC

Bs / GFCIs: Provide protection against leakage currents and electrical shocks. The output of the main breaker is often routed through an RCCB before reaching individual breakers. Neutral and Earth Bars: Neutral wires from all circuits connect to the neutral bar, while grounding wires connect to the earth bar.

Proper grounding ensures safety and compliance with electrical codes.

Wiring Layout and Installation

Phase, Neutral, and Ground Connections: Follow the principle “phase wire to phase terminal, neutral wire to neutral terminal, ground wire to ground terminal” to ensure correct wiring. Neat Cable Management: Wires should be organized, secured with ties, and arranged to avoid tangling or contact with sharp edges. Adequate spacing is needed for heat dissipation.

Pre-

Installed Wiring Considerations: In pre-wired panels, the main input, busbars, and neutral/earth connections are already installed, allowing electricians to connect branch circuits directly to the breakers. This reduces installation errors and improves safety. Testing: After wiring, insulation resistance tests and circuit on/off checks should be performed to verify proper operation and safety.

Safety and Compliance

Ensure the panel is properly grounded and all metal enclosures are bonded to the ground busbar. Use UL/CE-certified components and follow local electrical codes (NEC in the USA) for wire sizing, breaker ratings, and installation height. Maintain clearance around the panel for maintenance and emergency access.

Pre-installed wiring in a main distribution box simplifies installation, ensures proper connections, and enhances safety by providing a structured layout for all circuits, protective devices, and grounding systems. Proper understanding of these components is essential for safe and efficient electrical distribution.
