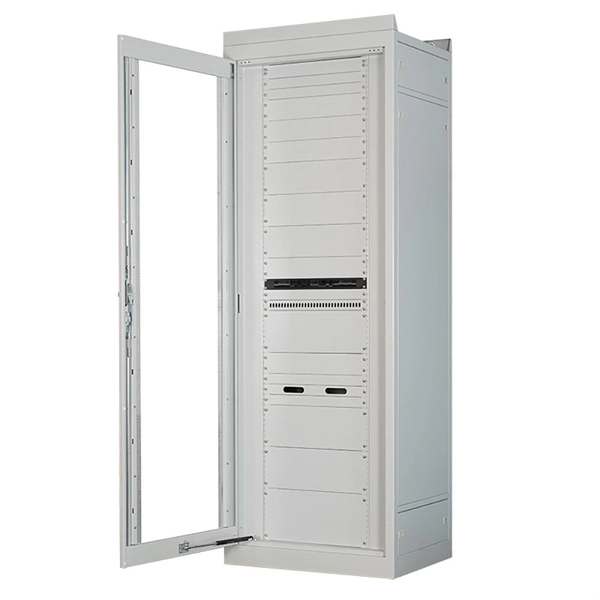

Color Standards for Distribution Boxes

Distribution boxes are typically coated in standardized RAL colors, with gray shades like RAL 7035 being most common for industrial and outdoor applications.

Standard Color Guidelines

Distribution boxes, whether for industrial, commercial, or residential use, are often coated with powder-coated finishes to ensure durability and corrosion resistance.

The RA

L color system is widely used to standardize these coatings, providing consistent color identification across manufacturers and installations. For example, light gray (RAL 7035) is commonly used for outdoor and indoor electrical distribution boxes due to its neutral appearance and visibility in various environments. Other colors may be applied for specific purposes: Yellow or orange for high-voltage or caution areasRed for emergency or fire-related circuitsBlue or green for control or signaling circuits These color codes help in quick identification and compliance with safety standards.

Material and Coating Considerations

Distribution boxes are generally made from steel plates, galvanized steel, or insulating materials, and the coating must adhere to the substrate to prevent corrosion and maintain electrical safety. Outdoor boxes often require IP55 or higher protection, and the coating should withstand UV exposure, moisture, and industrial pollutants. Powder coating is preferred for its durability and uniform finish.

Installation and Marking

While color is important, proper installation and labeling are equally critical. Distribution boxes should be installed straight, at recommended heights (1. 3–1.

5 m for fixed boxes), and clearly marked to indicate voltage, phase, and function. The color of the box can complement these markings to enhance visibility and safety.

Summary

Common RA

L color: Light gray (RAL 7035)Purpose-specific colors: Red, yellow, orange, blue, greenMaterial: Steel, galvanized steel, or insulating platesCoating: Powder-coated for durability and corrosion resistanceProtection: IP55 or higher for outdoor useInstallation: Proper height, straight alignment, and clear labeling Using standardized colors ensures safety, compliance, and easy identification of distribution boxes in industrial and commercial electrical systems.
