Pigtail Fiber Measurement

Fiber optic pigtails are measured by connecting them to a light source and power meter or OTDR, often using temporary splices or launch cables to assess loss and attenuation.

Understanding Fiber Pigtails

A fiber optic pigtail is a short length of optical fiber with a factory-terminated connector on one end and a bare fiber on the other end. The connector end plugs into equipment or patch panels, while the bare fiber is designed for fusion or mechanical splicing to the main fiber line. Pigtails are commonly used in single-mode and multimode fiber installations, typically ranging from 0.

5 to 2 meters in length. Methods for Measuring Pigtail Fiber1. Using a Launch Cable and Temporary SpliceFor field measurements, a fiber pigtail can serve as a launch cable.

The pigtail is connected to a light source, and the bare fiber end is temporarily spliced to the fiber under test using a fusion or mechanical splice. This allows measurement of insertion loss or attenuation. Key points include: Ensure a good cleave on the fiber for reliable splicing.

Temporary splices do not require splice protectors. Mode conditioning may be necessary for multimode fibers, while single-mode fibers require only a small loop (~50 mm) to maintain single-mode propagation. 2.

Using a Power MeterThe output power from the pigtail can be measured directly with a power meter. This can be done either: Before splicing, using a bare fiber adapter on the meter. After splicing, measuring the combined loss of the pigtail and the fiber under test.

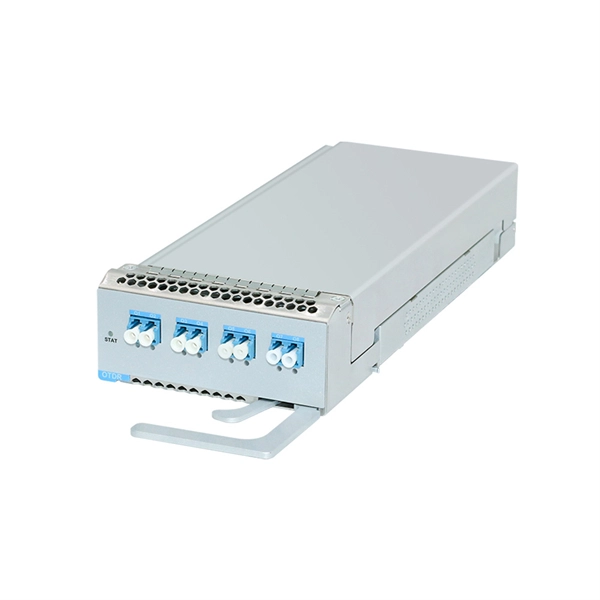

3. Using an OTDRAn Optical Time Domain Reflectometer (OTDR) can measure pigtail performance, especially for longer fibers (>50 m). The pigtail acts as a launch cable, and the fiber under test is connected via a temporary splice.

OTD

R measurements can: Identify splice and connector losses. Use bidirectional averaging to reduce backscatter mismatch errors. Require sufficiently long pigtails (typically 10 meters) for accurate short-pulse measurements.

Practical Considerations

Connector type and polish affect measurement accuracy; factory-terminated connectors provide consistent results. Single-mode vs. multimode fibers require different handling for mode conditioning. Splice quality is critical; poor cleaves or contamination can introduce significant measurement errors.

Temporary splices allow flexible testing without permanent installation, but introduce some uncertainty in absolute loss measurements.

Summary

To measure a fiber optic pigtail, you typically connect it to a light source or OTDR, use a temporary splice to the fiber under test, and measure loss or attenuation with a power meter or OTDR trace. Proper cleaving, mode conditioning, and connector quality are essential for accurate results, and pigtails provide a reliable interface between field fibers and test equipment.
