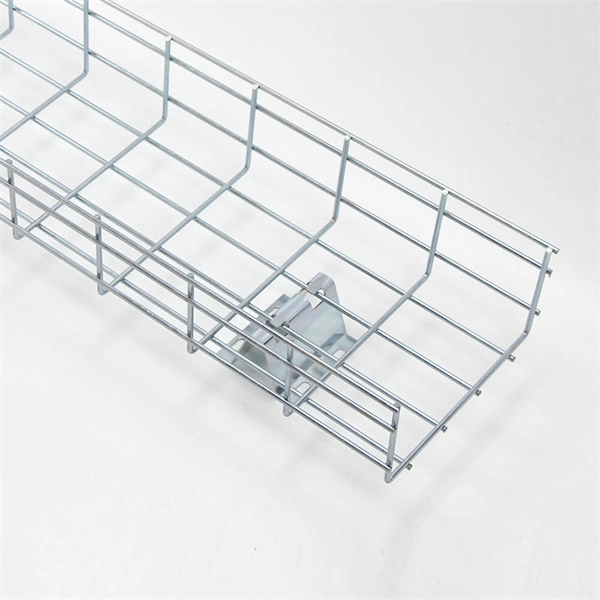

Internal wiring of cable tray

Internal wiring in cable trays involves organized routing, proper separation, and secure fastening of cables to ensure safety, accessibility, and compliance with standards.

Planning and Preparation

Before wiring, plan the cable tray route according to the site layout, electrical design, and clearance requirements. Review approved shop drawings to determine tray lengths, bends, and junctions, and ensure all materials, including trays, ladders, and fittings, are inspected for damage and compliance with specifications. Proper planning prevents overcrowding, overheating, and future maintenance issues.

Cable Tray Types and Selection

Choose the appropriate tray type based on cable load, environment, and airflow needs: Ladder trays: Allow ventilation and easy cable entry, suitable for heavy or high-voltage cables. Perforated trays: Support lighter loads and provide some airflow. Solid-bottom trays: Protect sensitive instrumentation or control cables from dust and interference.

Internal Wiring Practices

Cable Routing: Lay cables neatly along the tray, following the tray's path and bends. Maintain the minimum bend radius to prevent cable damage. Separation: Group cables by type (power, control, instrumentation) and voltage level to reduce interference and comply with electrical codes.

Fastening: Use cable ties, straps, or clamps to secure cables at regular intervals, leaving enough slack for thermal expansion and future adjustments. Layering: Avoid stacking cables excessively; distribute them evenly across the tray width to prevent overheating and mechanical stress. Supports and Spacing: Ensure trays are mounted securely with brackets or hangers spaced according to load and tray type, typically 1.

5–3 meters apart.

Safety and Compliance

Inspect all cables and trays before installation. Follow QA/QC procedures and maintain inspection records. Ensure operatives are trained and competent in safe handling and installation.

Avoid proceeding under unsafe conditions, and correct any hazards before wiring.

Additional Considerations

Use ventilated trays for heat dissipation in high-current applications. Apply covers for protection against dust, moisture, or electromagnetic interference. Plan for future expansion by leaving extra space in trays for additional cables.

By following these internal wiring methods, cable trays provide a safe, organized, and maintainable system for electrical installations in industrial, commercial, and service environments.
