How to install a 63-ampere distribution box

Fiber and communications infrastructure knowledge brief Published 03 Jul 2023

Use this reference to prepare product questions for CJC FIBRE. Check interfaces, capacity, protection and installation requirements against the current product documentation.

Installing a 63-ampere distribution box involves proper placement, secure mounting, correct wiring, and testing to ensure safe and reliable power distribution. Step 1: Choose the Installation LocationSelect a dry, accessible, and well-ventilated area for the distribution box, ideally 1. 5 meters above the ground for residential setups.

Avoid areas near water, flammable substances, or corrosive materials. If installed outdoors, ensure the enclosure has a high protection rating, such as IP66 or NEMA 4, to prevent water and dust ingress. Leave sufficient space around the box for maintenance and heat dissipation ( ).

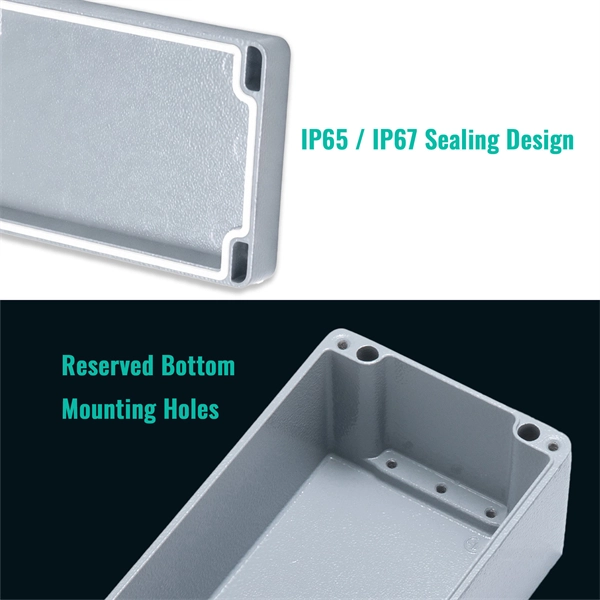

Step 2: Prepare the Enclosure and MountingUse a suitable electrical enclosure to protect internal components. Align the box on the installation surface, mark the positions for expansion bolts, and secure it firmly. Ensure the box is level and stable to prevent loosening or tilting ( ).

Step 3: Wire PreparationCut the insulation of the wires to expose the conductors, leaving enough length for secure connections. Follow color coding standards: line (phase) wires, neutral wires, and ground wires. Use wires of appropriate gauge to handle the 63A load safely ( ).

Step 4: Install Circuit BreakersInstall a 63A double-pole MCB as the main switch to handle the incoming supply. For output circuits, use single-pole MCBs for standard loads and double-pole MCBs for special loads. Include an RCCB for earth leakage protection, which is essential for domestic safety ( ).

Step 5: Connect the WiresConnect the input supply (phase and neutral) to the main MCB. Then connect the output wires to their respective MCBs. Ensure line-to-line, neutral-to-neutral, and ground-to-ground connections are correct.

Tighten all terminals securely to prevent loose connections ( ). Step 6: Organize and LabelRoute all wires neatly inside the enclosure, securing them with cable ties. Leave space for heat dissipation and avoid sharp edges.

Label each circuit clearly to facilitate future maintenance and troubleshooting ( ). Step 7: TestingBefore powering on, perform an insulation resistance test using a qualified tester to ensure proper insulation. Check all connections with a multimeter and verify that the MCBs and RCCB function correctly.

Only after confirming safety should the power supply be reconnected ( ).

Safety Tips

Always turn off the main power supply before starting installation. Use UL/CE-certified components and comply with local electrical codes. Wear insulated gloves and safety gear during installation.

Schedule regular inspections to maintain long-term reliability ( ). Following these steps ensures a safe, compliant, and efficient installation of a 63-ampere distribution box.
