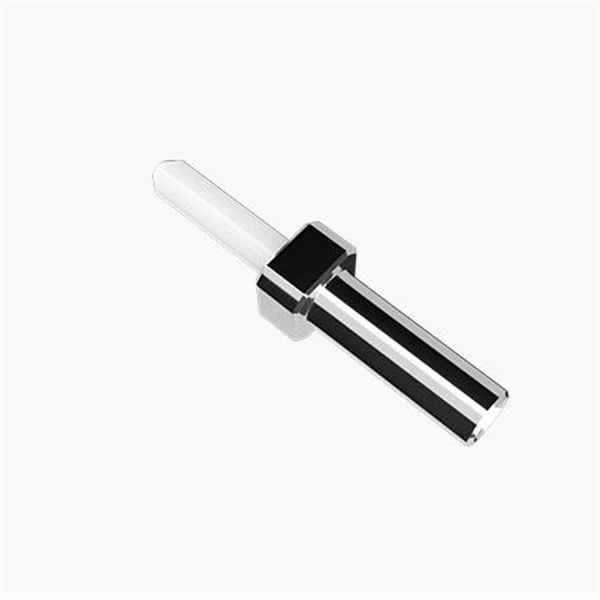

Performance Comparison of High Return Loss Adapters Dual-core vs VS Wireless

Dual-core adapters generally offer higher return loss and better impedance matching than VS Wireless adapters, resulting in more efficient RF power transmission and lower signal reflections.

Understanding Key Metrics

Return Loss (RL) measures the amount of RF power reflected back toward the source due to impedance mismatch. A higher return loss (more negative in dB) indicates better matching and less reflected power, which translates to higher transmission efficiency. Voltage Standing Wave Ratio (VSWR) is another indicator of impedance matching, representing the ratio of maximum to minimum voltage along a transmission line.

A VSW

R of 1 indicates perfect matching, while higher values indicate increased reflections and reduced efficiency. Return loss and VSWR are mathematically related and can be converted between each other for analysis. Dual-core AdaptersDual-core adapters are designed with enhanced impedance control and low-loss materials, which typically result in: Higher return loss values, meaning less power is reflected back to the source.

Lower VSW

R, indicating better matching with connected devices and transmission lines. Improved signal integrity, especially in high-frequency applications, reducing insertion loss and maintaining consistent power delivery. These characteristics make dual-core adapters suitable for high-performance RF systems, where minimizing reflections and maximizing transmitted power is critical.

V

S Wireless AdaptersVS Wireless adapters, while convenient for wireless connectivity, often exhibit: Moderate return loss, which may result in slightly higher reflected power compared to dual-core adapters.

Higher VSW

R, indicating less optimal impedance matching, which can reduce transmission efficiency. Potential signal degradation in high-frequency or long-distance applications due to increased reflections. These adapters are generally sufficient for standard wireless applications but may not match the performance of dual-core adapters in precision RF systems.

Practical Implications

System Efficiency: Dual-core adapters deliver more power to the load, reducing wasted energy and improving overall system efficiency. Signal Integrity: Lower reflections in dual-core adapters reduce interference and maintain cleaner signal transmission. Application Suitability: For high-frequency, high-power, or critical RF applications, dual-core adapters are preferable.

V

S Wireless adapters are suitable for general wireless connectivity where minor reflection losses are acceptable.

Conclusion

In terms of return loss and VSWR performance, dual-core adapters outperform VS Wireless adapters, providing better impedance matching, higher transmission efficiency, and reduced signal reflections.

V

S Wireless adapters remain practical for standard wireless setups but may not meet the stringent requirements of high-performance RF systems.
