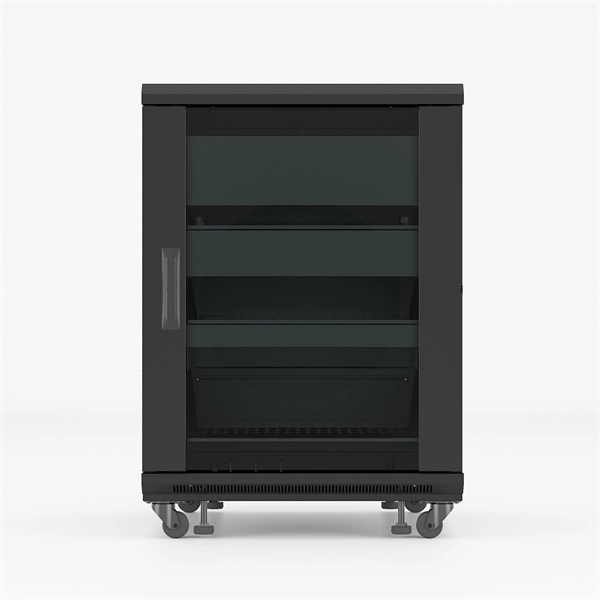

Organizing fiber optic cables in server racks

Effective fiber optic cable management relies on a combination of horizontal and vertical cable managers, patch panels, cable trays, and reusable fasteners to maintain organization, airflow, and signal integrity.

Horizontal Cable Management

Horizontal cable managers are installed between devices in a rack to guide fiber cables neatly across patch panels and switches. Common tools include: Brush strips: Allow cables to pass through while maintaining bend radius and preventing dust accumulation. D-rings and finger ducts: Keep cables grouped and prevent tangling, while preserving accessibility for maintenance.

Lacer bars: Provide structured pathways for routing multiple fiber cables efficiently. Best practices suggest allocating one unit (1U) of horizontal management for every two units (2U) of active equipment to maintain accessibility and accommodate future expansion.

Vertical Cable Management

Vertical managers run along the sides of the rack, providing organized pathways for longer cable runs. Recommended options include: Bend radius fingers: Protect fiber from sharp bends that can degrade signal performance. Vertical D-rings: Bundle large cable groups while separating power and data lines to reduce interference.

Front/back accessible channels: Facilitate maintenance without disrupting other cables.

Patch Panels and Rack Mounts

Fiber patch panels: Centralize connections, simplify troubleshooting, and support modular expansion in high-density environments. Rack-mounted enclosures: Protect fiber connectors and adapters while maintaining clean front-to-back airflow.

Cable Trays and Pathways

Overhead or under-rack trays: Route fiber cables along defined paths to prevent overcrowding and tangling. Raceways: Provide additional protection and separation from power cables, reducing electromagnetic interference.

Fasteners and Accessories

Reusable Velcro straps: Secure cables without over-tightening, allowing easy modifications. Color-coded labels: Simplify identification and reduce troubleshooting time. Service loops: Leave extra slack for maintenance and future changes, avoiding tight bends that can damage fibers.

Best Practices

Plan cable routes before installation, documenting device locations and rack layout. Reserve one side of the rack for power cables and the other for network/fiber cables to prevent interference. Maintain proper bend radius and avoid over-tightening fasteners.

Use pre-measured cables to reduce excess slack and clutter. Ensure airflow is unobstructed to prevent overheating and maintain equipment performance. By combining these tools and practices, server racks can maintain organized, accessible, and high-performance fiber optic cabling, reducing downtime and simplifying maintenance in both small and high-density data center environments.
