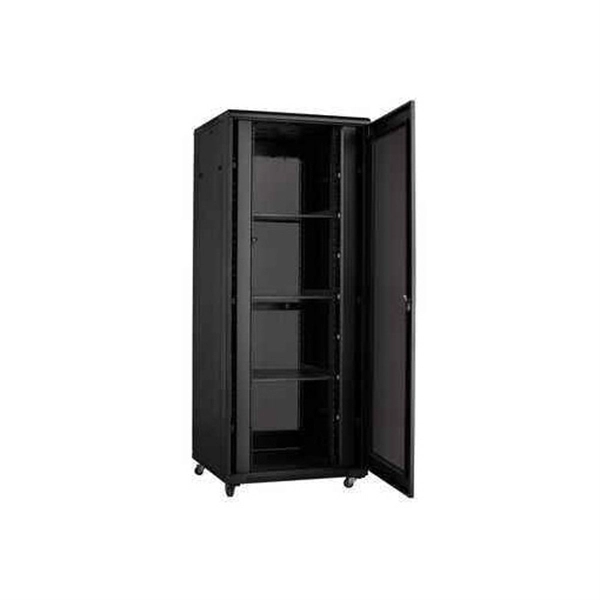

Network Cabinet Routing in Network Cabinets

Efficient cable routing in network cabinets improves airflow, reduces downtime, and simplifies maintenance while supporting high-density and scalable IT infrastructure.

Key Principles of Cable Routing

Proper cable routing ensures organized, accessible, and efficient network cabinets. It reduces clutter, prevents accidental disconnections, and improves airflow, which lowers cooling costs and prevents hardware overheating ( ). Think of cables like roads: well-organized paths allow smooth traffic, while tangled cables create congestion and maintenance challenges ( ).

Common Cable Routing Solutions

Vertical and Horizontal Cable ManagersVertical managers guide cables along the sides of racks, keeping them off equipment and maintaining neat pathways. Horizontal managers support cables between patch panels and switches, ensuring proper bend radius and reducing signal loss ( ).

Cable Trays and Ladder Racks

Horizontal or vertical trays hold multiple cables, preventing them from piling up and supporting high-density setups. Ladder racks provide robust support for heavy cabling and maintain signal integrity ( ).

Patch Panels and Modular Systems

Patch panels centralize connections, making moves, adds, and changes easier. Modular systems like patchbox.one allow retractable cables, faster installation, and up to 50% more rack space utilization ( ).

Cable Management Accessories

Reusable ties, radius drop kits, and movable cross members help maintain proper bend radius, reduce strain, and allow flexible routing as network configurations evolve ( ). Pre-drilled rails, removable panels, and adjustable mounting options enhance accessibility and future scalability ( ).

Benefits of Effective Cable Routing

Improved Airflow and Cooling: Properly routed cables reduce obstruction, lowering cooling costs by 20–25% ( ). Reduced Downtime: Organized cables prevent 30% of downtime caused by cable faults and simplify maintenance ( ). Space Optimization: Modular and retractable systems increase usable rack space by up to 50% ( ).

Enhanced Reliability: Minimizes cable strain, signal loss, and hardware failure, ensuring consistent system performance ( ).

Best Practices

Plan cable paths before installation to avoid congestion. Separate power and data cables to reduce interference. Use color-coded cables for easier identification.

Maintain proper bend radius to prevent signal degradation. Regularly audit and adjust cable routing as network demands grow ( ). By combining vertical/horizontal managers, trays, patch panels, and modular systems, IT teams can achieve a clean, scalable, and efficient network cabinet setup that supports high-density cabling and reduces operational risks.
